Audio-Technica AT-VM95SH VM Phono Cartridge is a high-performance member of Audio-Technica’s VM95 Series, fitted with a nude Shibata stylus for exceptional detail, tracking and low distortion. With its dual moving magnet design, aluminium cantilever and threaded mounting body, it delivers serious hi-fi performance while remaining easy to install and upgrade.
Key Features

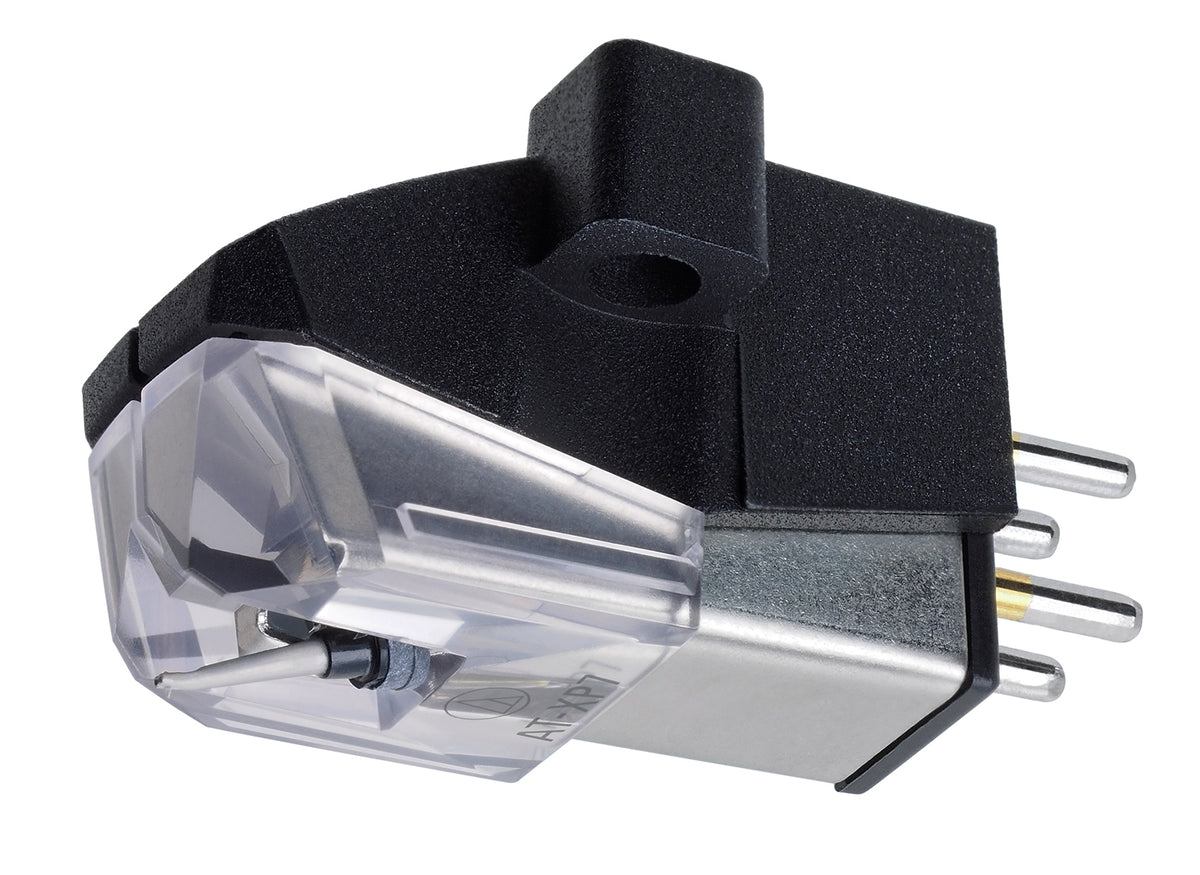

The AT-XP7 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 6.0 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
-
- Durable robust design for high-quality specialist DJ playback
- Cartridges designed for DJ venue applications for their Hi Fi audio Performance
- Great visibility of stylus tip for instant positioning in dark environments
- Audiophile experience associated with DJ’ing environment with the signal output level and output impedance characteristics adapted to DJ professional mixing boards
- VM dual magnet cartridge with 0.3 x 0.7 mil elliptical bonded stylus
- Tapered aluminium cantilever
- Stainless wire suspension enables expressive higher frequency for clearer sound
- High-rigidity and Low-resonance cartridge housing
- Replacement Stylus: ATN-XP7
Why Buy from Elite Radio
Elite Radio & Engineering Co. is the authorised Audio-Technica agent in Sri Lanka. Every unit is genuine Audio-Technica stock, supplied with manufacturer warranty and backed by islandwide delivery and after-sales support from our Colombo team.
Specifications
| Frequency Response | 20 - 20,000 Hz |
|---|---|
| Channel Separation | 22 dB at 1kHz |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force | 2.0 to 4.0 g (standard 3g) |
| Stylus Construction | Bonded Round Shank |
| Recommended Load Impedance | 47,000 ohms |
| Coil Inductance | 1.0 H (1 kHz) |
| Output Voltage | 6.0 mV (mV at 1 kHz, 5 cm/sec) |
| Output Channel Balance | Output Channel Balance |
| Stylus Shape | Elliptical |
| Cantilever | Aluminium tapered Pipe |
| Static Compliance | 20 x 10-6 cm/dyne |
| Dynamic Compliance | 8.0x10-6cm/dyne (100Hz) |
| Mounting | Half-inch |
| Dimensions | H17.2×W17.8×D28.3mm |
| Accessories Included | Cartridge installation slotted screws 11.0 mm (0.43”) x 2 and 8.0 mm (0.31”) x 2, Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1 |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | ATN-XP7 |
| Stylus Size | 0.3 x 0.7 mil |
| Type | VM Dual Magnet |
| Weight | 6.2g |
| Frequency Response | 20 - 20,000 Hz |
|---|---|
| Channel Separation | 22 dB at 1kHz |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force | 2.0 to 4.0 g (standard 3g) |
| Stylus Construction | Bonded Round Shank |
| Recommended Load Impedance | 47,000 ohms |
| Coil Inductance | 1.0 H (1 kHz) |
| Output Voltage | 6.0 mV (mV at 1 kHz, 5 cm/sec) |
| Output Channel Balance | Output Channel Balance |
| Stylus Shape | Elliptical |
| Cantilever | Aluminium tapered Pipe |
| Static Compliance | 20 x 10-6 cm/dyne |
| Dynamic Compliance | 8.0x10-6cm/dyne (100Hz) |
| Mounting | Half-inch |
| Dimensions | H17.2×W17.8×D28.3mm |
| Accessories Included | Cartridge installation slotted screws 11.0 mm (0.43”) x 2 and 8.0 mm (0.31”) x 2, Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1 |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | ATN-XP7 |
| Stylus Size | 0.3 x 0.7 mil |
| Type | VM Dual Magnet |
| Weight | 6.2g |
| Frequency Response | 20 - 20,000 Hz |
|---|---|
| Channel Separation | 22 dB at 1kHz |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force | 2.0 to 4.0 g (standard 3g) |
| Stylus Construction | Bonded Round Shank |
| Recommended Load Impedance | 47,000 ohms |
| Coil Inductance | 1.0 H (1 kHz) |
| Output Voltage | 6.0 mV (mV at 1 kHz, 5 cm/sec) |
| Output Channel Balance | Output Channel Balance |
| Stylus Shape | Elliptical |
| Cantilever | Aluminium tapered Pipe |
| Static Compliance | 20 x 10-6 cm/dyne |
| Dynamic Compliance | 8.0x10-6cm/dyne (100Hz) |
| Mounting | Half-inch |
| Dimensions | H17.2×W17.8×D28.3mm |
| Accessories Included | Cartridge installation slotted screws 11.0 mm (0.43”) x 2 and 8.0 mm (0.31”) x 2, Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1 |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | ATN-XP7 |
| Stylus Size | 0.3 x 0.7 mil |
| Type | VM Dual Magnet |
| Weight | 6.2g |
| Frequency Response | 20 - 20,000 Hz |
|---|---|
| Channel Separation | 22 dB at 1kHz |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force | 2.0 to 4.0 g (standard 3g) |
| Stylus Construction | Bonded Round Shank |
| Recommended Load Impedance | 47,000 ohms |
| Coil Inductance | 1.0 H (1 kHz) |
| Output Voltage | 6.0 mV (mV at 1 kHz, 5 cm/sec) |
| Output Channel Balance | Output Channel Balance |
| Stylus Shape | Elliptical |
| Cantilever | Aluminium tapered Pipe |
| Static Compliance | 20 x 10-6 cm/dyne |
| Dynamic Compliance | 8.0x10-6cm/dyne (100Hz) |
| Mounting | Half-inch |
| Dimensions | H17.2×W17.8×D28.3mm |
| Accessories Included | Cartridge installation slotted screws 11.0 mm (0.43”) x 2 and 8.0 mm (0.31”) x 2, Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1 |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | ATN-XP7 |
| Stylus Size | 0.3 x 0.7 mil |
| Type | VM Dual Magnet |
| Weight | 6.2g |
| Frequency Response | 20 - 20,000 Hz |
|---|---|
| Channel Separation | 22 dB at 1kHz |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force | 2.0 to 4.0 g (standard 3g) |
| Stylus Construction | Bonded Round Shank |
| Recommended Load Impedance | 47,000 ohms |
| Coil Inductance | 1.0 H (1 kHz) |
| Output Voltage | 6.0 mV (mV at 1 kHz, 5 cm/sec) |
| Output Channel Balance | Output Channel Balance |
| Stylus Shape | Elliptical |
| Cantilever | Aluminium tapered Pipe |
| Static Compliance | 20 x 10-6 cm/dyne |
| Dynamic Compliance | 8.0x10-6cm/dyne (100Hz) |
| Mounting | Half-inch |
| Dimensions | H17.2×W17.8×D28.3mm |
| Accessories Included | Cartridge installation slotted screws 11.0 mm (0.43”) x 2 and 8.0 mm (0.31”) x 2, Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1 |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | ATN-XP7 |
| Stylus Size | 0.3 x 0.7 mil |
| Type | VM Dual Magnet |
| Weight | 6.2g |
| Frequency Response | 20 - 20,000 Hz |
|---|---|
| Channel Separation | 22 dB at 1kHz |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force | 2.0 to 4.0 g (standard 3g) |
| Stylus Construction | Bonded Round Shank |
| Recommended Load Impedance | 47,000 ohms |
| Coil Inductance | 1.0 H (1 kHz) |
| Output Voltage | 6.0 mV (mV at 1 kHz, 5 cm/sec) |
| Output Channel Balance | Output Channel Balance |
| Stylus Shape | Elliptical |
| Cantilever | Aluminium tapered Pipe |
| Static Compliance | 20 x 10-6 cm/dyne |
| Dynamic Compliance | 8.0x10-6cm/dyne (100Hz) |
| Mounting | Half-inch |
| Dimensions | H17.2×W17.8×D28.3mm |
| Accessories Included | Cartridge installation slotted screws 11.0 mm (0.43”) x 2 and 8.0 mm (0.31”) x 2, Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1 |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | ATN-XP7 |
| Stylus Size | 0.3 x 0.7 mil |
| Type | VM Dual Magnet |
| Weight | 6.2g |
