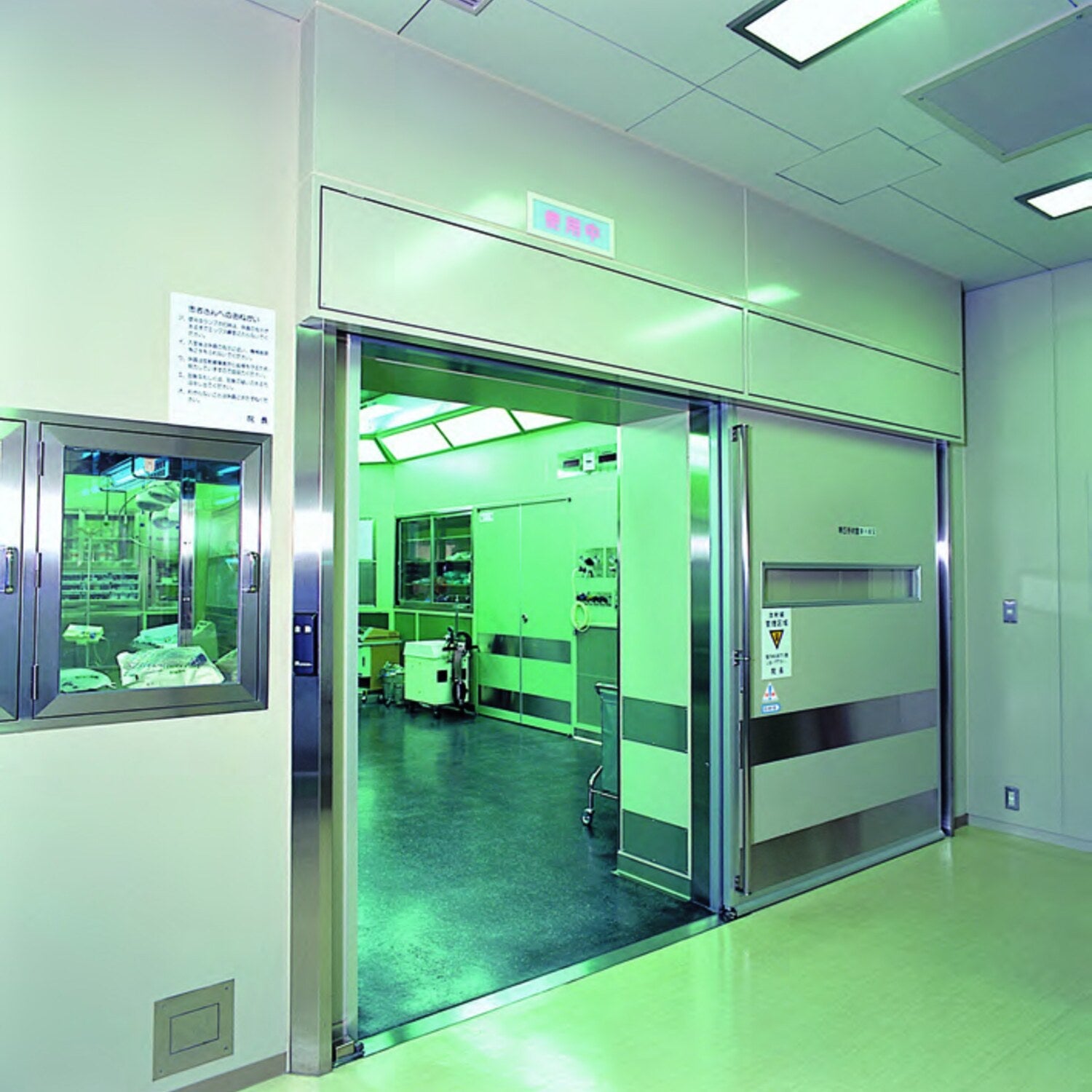

NABCO NAT DOOR is an automatic sliding door with a sealing function. When the leaf reaches the fully closed position a lower packing descends automatically to complete the seal, and the door opens again with no residual clearance. The guide rail is flat, so the threshold stays barrier free for trolleys and wheelchairs. It is certified to JIS A 4702 for both air-tightness and sound insulation.
Key Features
- Automatic lower seal, the packing descends on full close and lifts before the door moves, so the seal never drags.
- Certified performance, JIS A 4702 Class A-3 and A-4 for air-tightness, Class T-1 for sound insulation.
- Barrier-free threshold, a flat guide rail that trolleys, beds and wheelchairs cross without a lip.
- Supplied and installed by Elite Radio, following a site survey, with installation covered in your project quotation.
Why Buy from Elite Radio
Elite Radio & Engineering Co. is the sole importer and authorised agent for NABCO in Sri Lanka, established 1959. Every door is genuine Nabtesco equipment, surveyed, installed and commissioned by our own engineering team, and backed by islandwide service, spares and scheduled maintenance from our Colombo base.
Specifications
- Brand: NABCO (Nabtesco, Japan)
- Type: NAT DOOR air-tight automatic sliding door, single or bi-parting
- Applicable door mass: 150 kg x 1 single, or 120 kg x 2 bi-parting
- Applicable opening width: 1200 to 2800 mm
- Applicable door width: 800 to 2000 mm
- Clear opening area: up to 6.7 m2 soundproof specification, up to 6.0 m2 air-tight specification
- Operator box size: 350 mm height x 190 mm depth
- Frame thickness: 200 mm
- Panel finish: stainless steel hairline, or SPCC steel t=0.8 mm with acrylic paint
- Air-tight performance: JIS A 4702 Class A-3 and A-4
- Soundproof performance: JIS A 4702 Class T-1
- Application: hospitals and operating theatres, laboratories, broadcast studios
- Warranty: NABCO manufacturer warranty plus Elite Radio workmanship cover (contact us for current terms)
Operator model, seal specification, power supply and controls for the Sri Lanka market are confirmed at quotation, after a site survey.
Shipping & Returns
Genuine NABCO equipment supplied through Elite Radio & Engineering Co., the sole importer and authorised NABCO agent in Sri Lanka, with manufacturer warranty on the equipment and our own cover on the installation. Contact us for current warranty terms.
Quote & installation: NABCO automatic doors are supplied and priced per project. Tap Request a Quotation for a site survey, operator selection and a fixed installation quotation from our engineering team.
Delivery & service: Islandwide supply, professional installation, commissioning and after-sales service by Elite Radio from our Colombo base.
