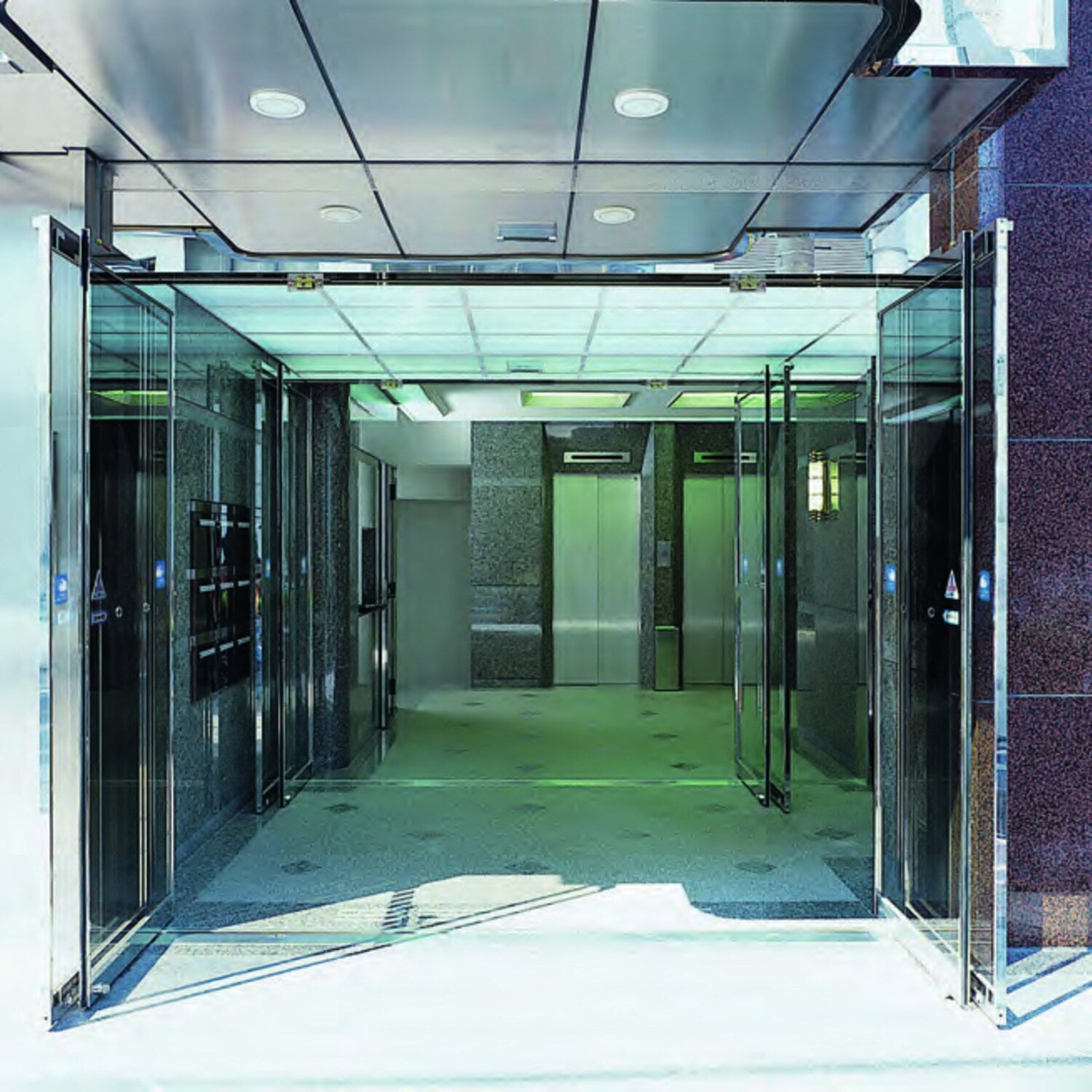

The NABCO wide-open and breakout operators solve entrances that occasionally need to be far wider than normal. The wide-open unit runs as a conventional sliding door day to day, then the panels swing manually at full open to roughly double the clear opening when large objects or event crowds have to pass. The breakout unit adds emergency egress, with panels that swing out from any position.
Key Features
- Twice the clear opening on demand, up to 4326 mm, without a second entrance.
- Breakout from any position, so the doorway meets emergency egress requirements.
- Normal sliding operation the rest of the time, with no compromise in everyday use.
- Supplied and installed by Elite Radio, following a site survey, with installation covered in your project quotation.
Why Buy from Elite Radio
Elite Radio & Engineering Co. is the sole importer and authorised agent for NABCO in Sri Lanka, established 1959. Every door is genuine Nabtesco equipment, surveyed, installed and commissioned by our own engineering team, and backed by islandwide service, spares and scheduled maintenance from our Colombo base.
Specifications
- Brand: NABCO (Nabtesco, Japan)
- Type: Wide-open sliding with manual swing at full open, or breakout with swing from any position
- Applicable door mass: max 120 kg per leaf, single or bi-parting
- Applicable door width: 750 to 1231 mm
- Applicable door height: 1700 to 2384 mm
- Clear opening, sliding mode: up to 2130 mm
- Clear opening, wide open: up to 4326 mm
- Transom: 290 mm height, 155 mm depth
- Open and close speed: variable, under 0.4 m/s
- Application: exhibition centres, shopping malls, airports, offices
- Warranty: NABCO manufacturer warranty plus Elite Radio workmanship cover (contact us for current terms)
Operator model, egress compliance, power supply and controls for the Sri Lanka market are confirmed at quotation, after a site survey.
